25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board

Guangdong Jiesheng Electric Technology Co., Ltd
Contact Now
    Buy cheap 25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board from wholesalers

    Buy cheap 25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board from wholesalers
    • Buy cheap 25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board from wholesalers
    • Buy cheap 25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board from wholesalers

    25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board

    Ask Lasest Price
    Brand Name : STABLECU
    Model Number : ST310-4T18.5GB
    Certification : CE
    Price :
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability :
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board

    18.5KW 25HP Vector Control With Drive Board Three Phase Frequency Inverter


    Description of frequency inverter

    ST310 adopts a DSP control system to realize vector control and effectively suppress low-frequency oscillation.
    Abundant terminals make the application more flexible. It is mainly used for fans and pump loads.
    It has higher requirements for speed control accuracy, torque response speed, and low-frequency output.

    Specificatiom of frequency inverter

    Output current39A
    Input current44A
    Adaptation motor18.5KW
    Braking resistor power5KW
    Mounting dimension192*199*397MM
    Weight12KG
    Packing Size271*260*424MM

    Other models of frequency inverter

    ModelST310-15GBST310-18.5GBST310-22GB
    Specific Parameters
    Applicable Motor (kw)1518.520
    Input Current (A)35.044.050.0
    Output Current (A)30.039.045.0
    Breaker (A)50.063.063.0
    Contactor (A)10.050.050.0
    Brake UnitStandard Built-in
    Braking Resistor Power2.0KW5.0KW5.0KW
    Resistance/ Ultimate resistance40 (≥25)30(≥16)30(≥16)
    Power Input
    Rated Voltage3 Phase 380V
    Rated Voltage50HZ/60HZ
    Allow Frequency Fluctuation±5%
    Allow voltage fluctuationVoltage imbalance<3%, distortion rate meets the requirements of 1EC61800-2
    Allow voltage fluctuationThe constant voltage fluctuation is ±10%, and the short fluctuation is115%~+10%, that is, 323V~528V
    Power Output
    Output VoltageThe 3-Phase:0~rated input voltage, error less than ±3%
    Output Frequency0.00~300.00HZ,each unit 0.01HZ
    Overload Capacity150% 60s, 180% 10s, 200% 0.5s

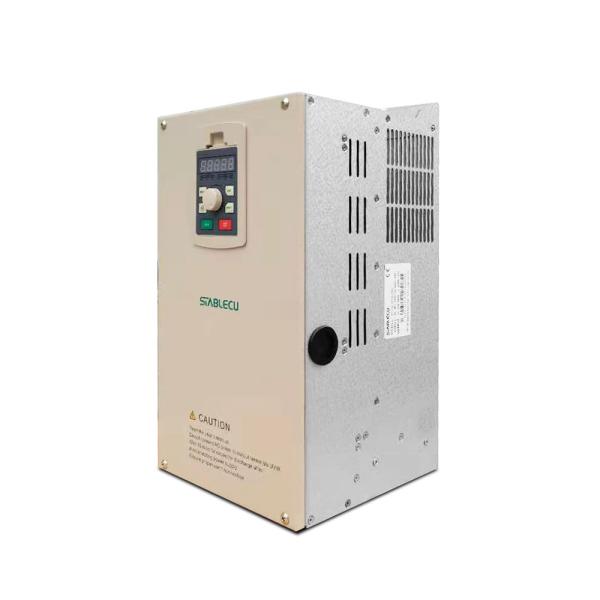

    Details image of frequency inverter

    25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board

    25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board

    Application of frequency inverter

    Inverters are widely used in pharmaceutical machinery, packaging machinery, textile machinery,
    food machinery, auto parts production lines, precision printing, welding, automated production lines, etc.

    25HP Three Phase Frequency Inverter , 18.5KW Vector Control Frequency Inverter With Drive Board

    FAQ

    1. Who are we?
    We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%).
    There are a total of about 201-300 people in our office.
    2. How can we guarantee the quality?
    Always a pre-production sample before mass production; Always final Inspection before shipment.
    3. What can you buy from us?
    Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter,
    Automation System Development And Complete Set Of Electric Box.
    4. Do you offer customization services?
    Yes, we can customize the products according to your requirements. Please send us an inquiry,
    your inquiry will be replied within 12 hours.
    5. What services can we provide?
    Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery;
    Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
    Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
    Language Spoken: English, Chinese.
